Recently, developer William Schack released Repetitionless, a tool built to deal with a common issue in environment art: visible texture repetition.
This project started around two years ago, at a time when most solutions focused on basic stochastic sampling and were not always easy to integrate, according to William.
This project started around two years ago, at a time when most solutions focused on basic stochastic sampling and were not always easy to integrate, according to William.
The idea was to bring several approaches together into something that could be applied directly to materials and terrains.
Ive made a tool to easily remove texture repetition from materials and terrains!
by u/Chazburger_ in Unity3D
Breaking Up Repetition
To break up visible tiling, the shader uses several techniques that work together.

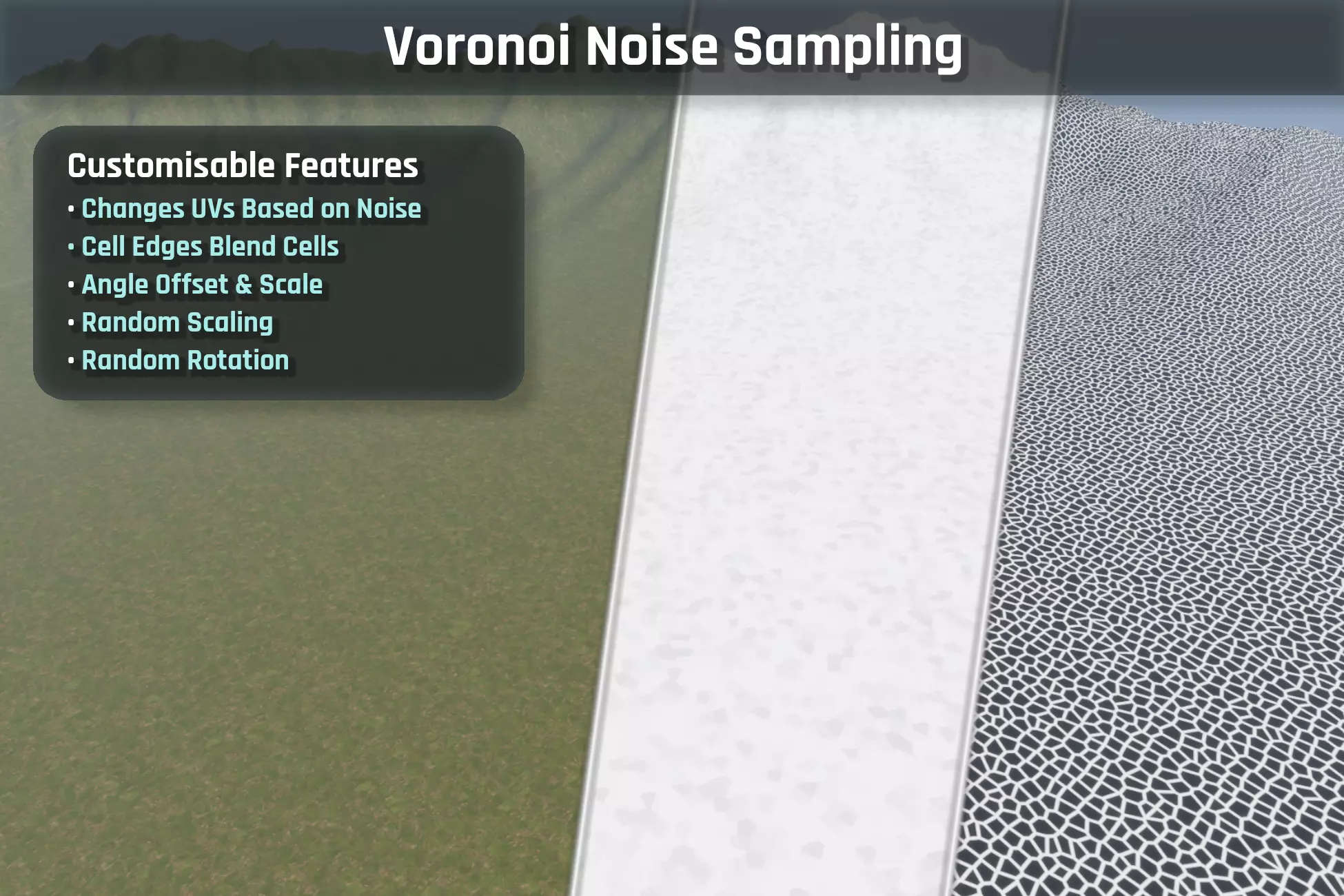

One of the main ones is Voronoi-based variation, which splits the texture into cells and blends between them. Each cell can apply small changes like rotation or scaling, helping break uniform patterns.

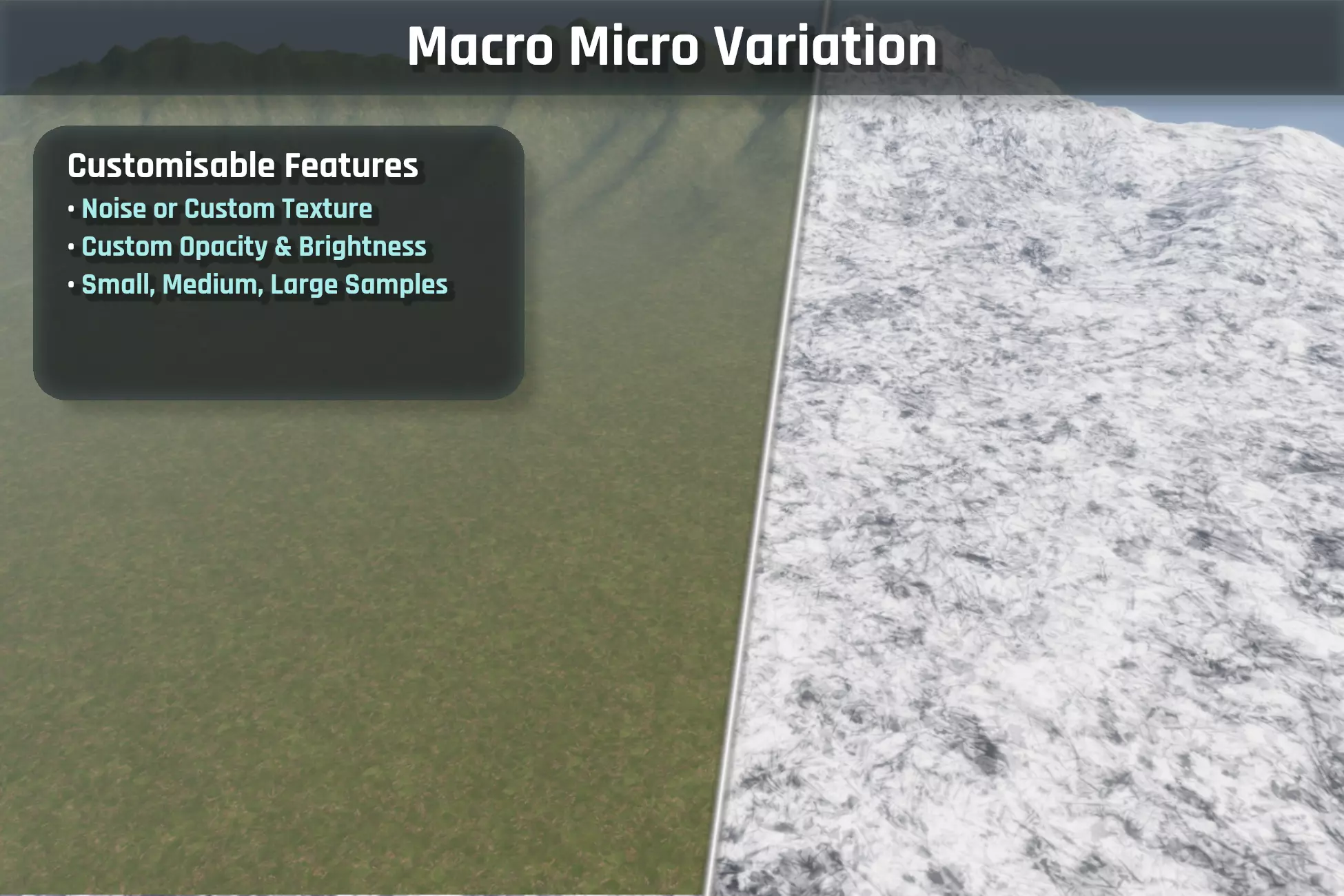

There is also support for triplanar sampling, which helps avoid stretching when surfaces are viewed from different angles, and macro/micro variation, where additional textures or noise are layered to introduce more detail.

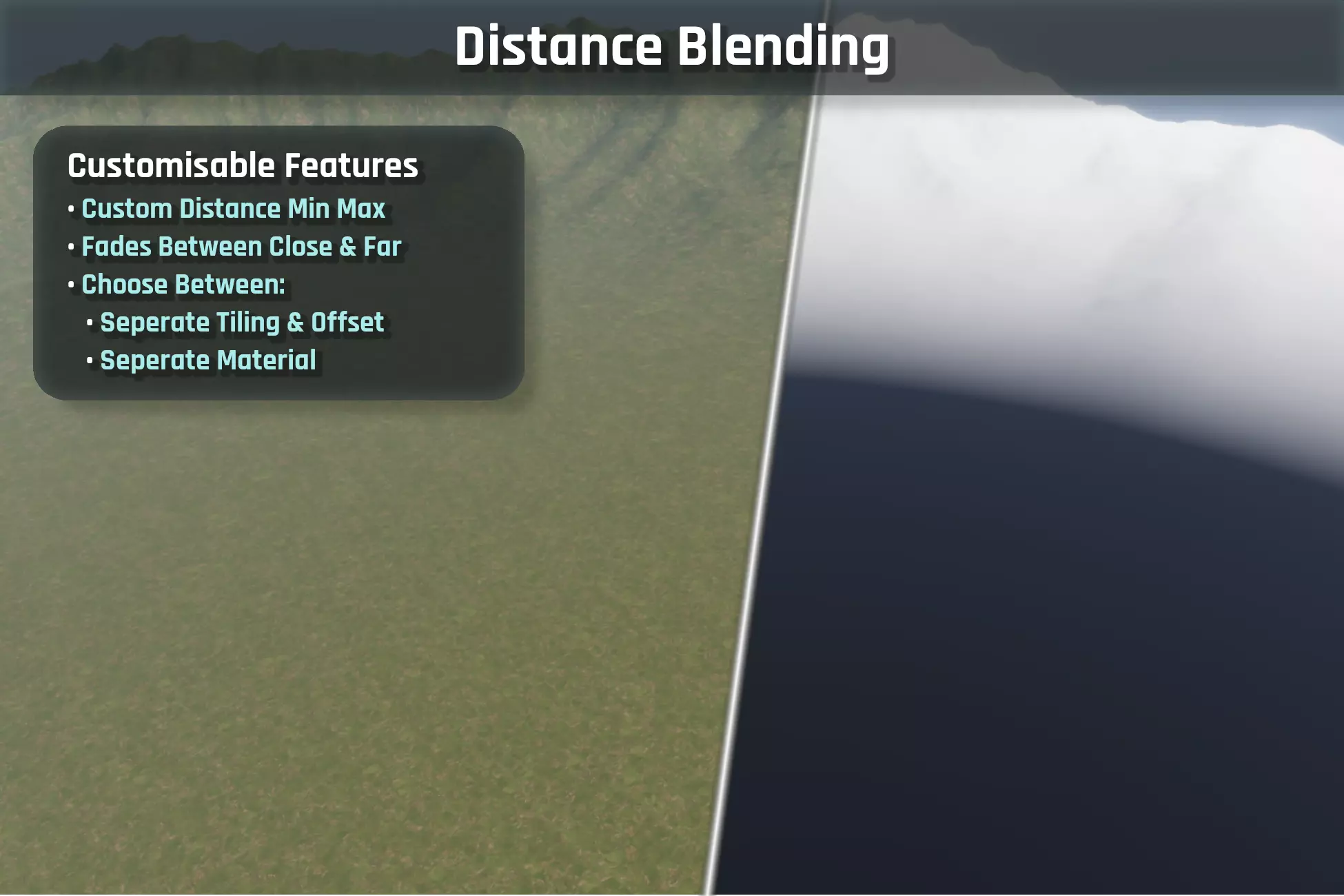

Another part of the system is distance blending, which allows materials or tiling values to change depending on how far the surface is from the camera. This helps reduce repetition over large areas without affecting close-up detail.
Material and Terrain Support
Repetitionless is designed to work across both standard materials and terrains.

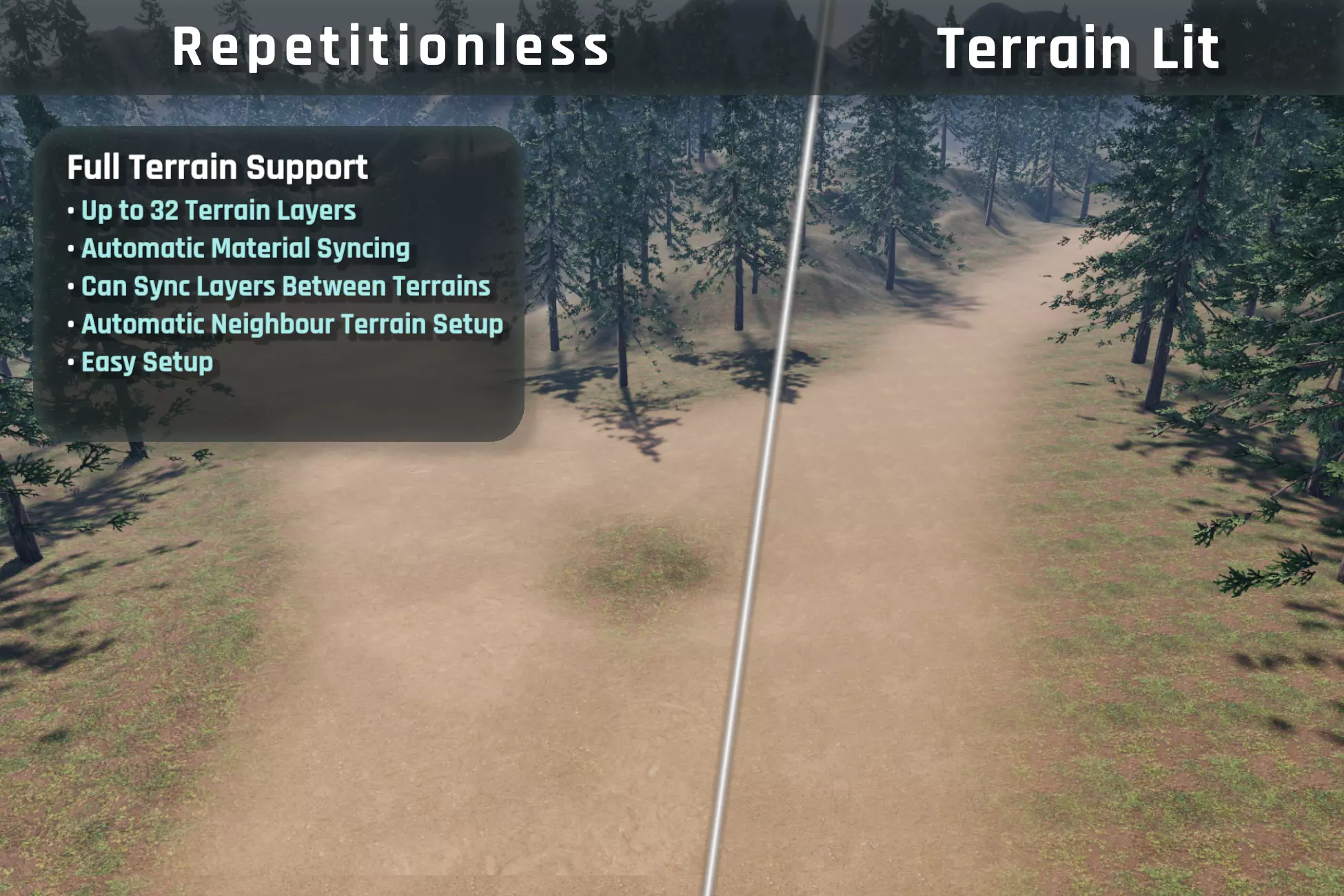

For terrains, the tool supports up to 32 layers in a single pass, with a custom component handling how textures and materials stay in sync. Once set up, changes to terrain layers can automatically update the material.
For terrains, the tool supports up to 32 layers in a single pass, with a custom component handling how textures and materials stay in sync. Once set up, changes to terrain layers can automatically update the material.

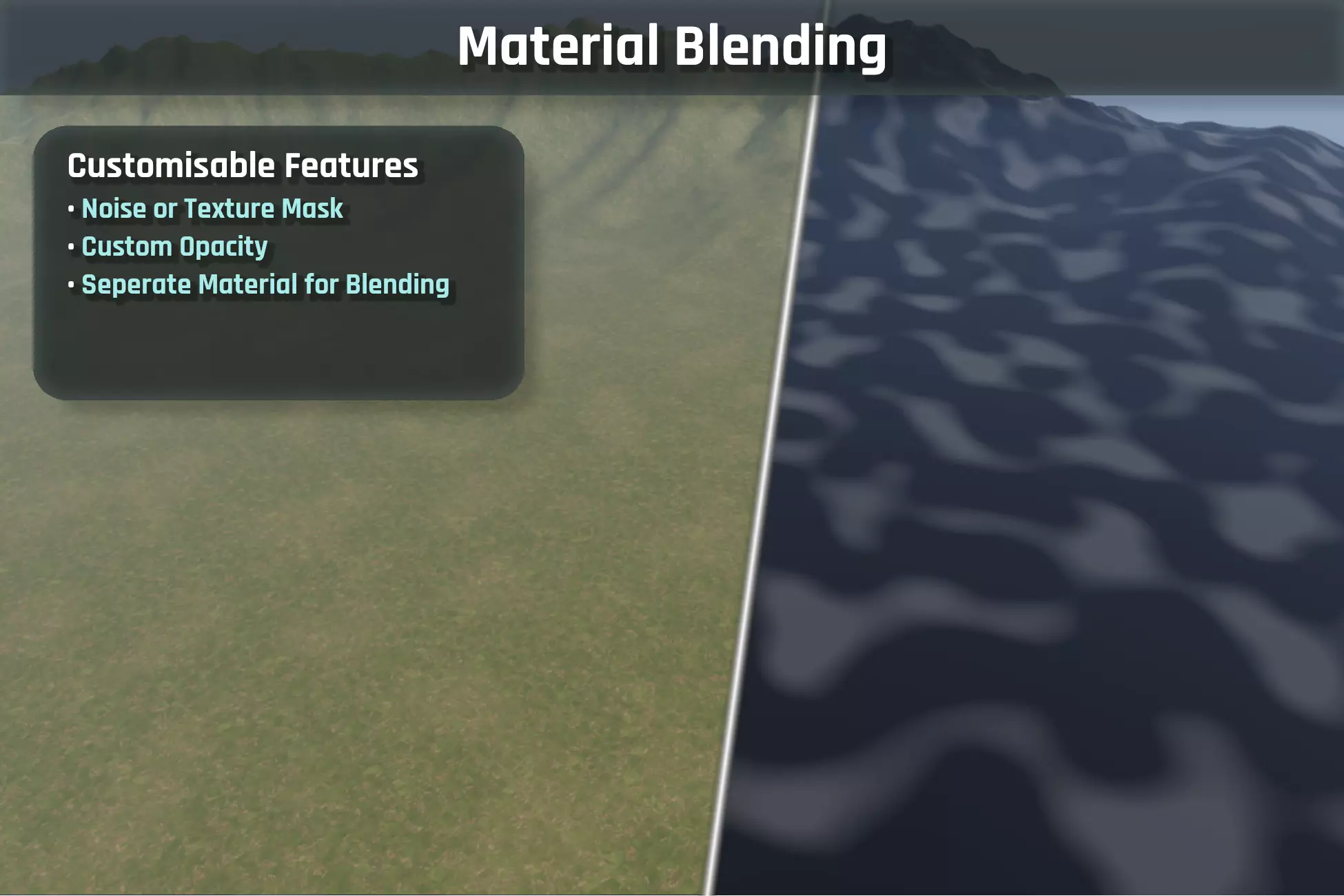

The system includes material blending, allowing additional layers to be overlaid using noise or custom masks. This makes it easier to mix different surface types without repeating patterns becoming obvious.
Materials can also be converted from standard lit shaders, keeping their original settings while switching to the "repetitionless" version.
How Data Is Stored
Each material comes with its own data folder, which is managed automatically. Textures are then packed into arrays to reduce the number of samples in the shader.
These arrays group different channels together, such as albedo with variation, or normals with smoothness and occlusion. This helps keep things efficient, although it does mean each array needs to use a consistent resolution.
To keep things manageable with many layers, the system relies on texture arrays and packed data, reducing the number of inputs the shader needs to handle.
To keep things manageable with many layers, the system relies on texture arrays and packed data, reducing the number of inputs the shader needs to handle.
Working with Shaders

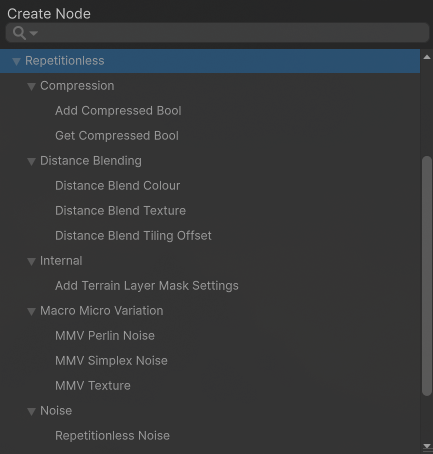

You can use the shaders as they are, or bring parts of the system into your own setup through the included sub-graphs and functions. This lets you reuse things like variation or blending without bringing in the full shader.
A recent update also made it easier to create and convert materials. Instead of setting everything up manually, you can now do it through a button.
Why It Was Built
William mentioned that the project started mainly as a learning exercise, but also as a response to the lack of flexible tools for handling texture repetition at the time.
As more features were added, it grew into a more complete system, bringing different techniques together in a way that could be applied directly in production.
If you’d like to follow updates or check out the tool, you can do it here:
- William’s website: https://wilschack.dev/
- Repetitionless page: https://assetstore.unity.com/packages/tools/terrain/repetitionless-345604
